Land Rover Wheel Specifications
If you have any better information or
don't
agree, please feel free to e-mail me at:
red90 ampersand red90.ca “Spam blocking, replace ampersand with @
and no spaces”
Application |
Size |

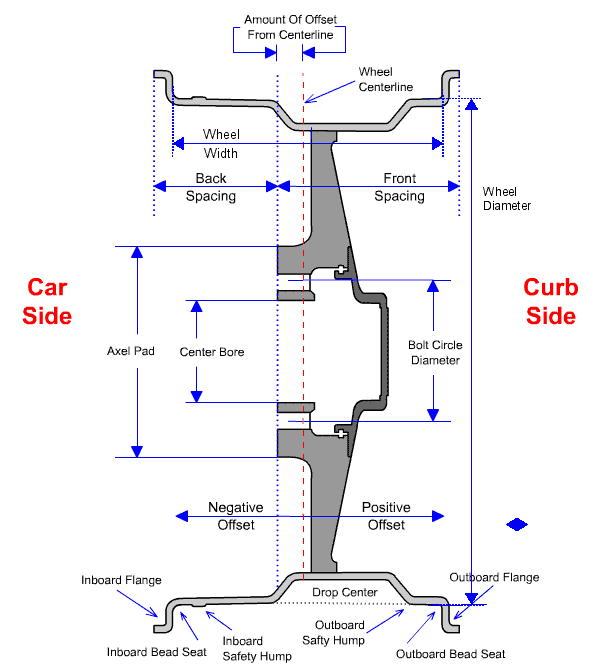

Backspacing |
Frontspacing |
Offset Calculated |
Offset Stamped |
Load Rating |
Weight |
|
Defender/Series
Tubed Riveted |
16” x 5.5” |
127 mm (5”) |
55 mm
(2-3/16”) |
36 mm |
33 mm |
NS |
NS |
|
“Wolf”
Tubeless |
16”x6.5” |
117 mm
(4-5/8”) |
76 mm (3”) |
21 mm |
20.6 mm |
NS |
NS |
|
Defender
130 / 1 ton wheels |
16”x6.5” |
116 mm
(4-9/16”) |
76 mm (3”) |
20 mm |
20.6 mm |
NS |
NS |
|
Aftermarket
Tubeless |
16” x 7” |
110 mm
(4-5/16”) |
97 mm
(3-13/16”) |
7 mm |
NS |
NS |
NS |
|
Aftermarket
Tubeless |
16” x 7” |
114 mm
(4-1/2”) |
92 mm
(3-5/8”) |
13 mm |
NS |
NS |
NS |
|
Rangerover
Classic 3 spoke |
16” x 7” |
137 mm
(5-3/8”) |
85 mm
(3-1/4”) |
27 mm |
33 mm |
NS |
NS |
|
Discovery
steel 5 spoke |
16” x 7” |
137 mm
(5-3/8”) |
65 mm
(2-9/16”) |
36 mm |
33 mm |
NS |
NS |
|
Boost Alloys |
16” x 7” |
137 mm
(5-3/8”) |
Unknown |
NA |
33 mm |
NS |
NS |
|
Aftermarket
Tubeless |
16” x 8” |
125 mm
(4-15/16”) |
105 mm
(4-1/8”) |
10 mm |
NS |
NS |
NS |
Updated 2018/04/01
